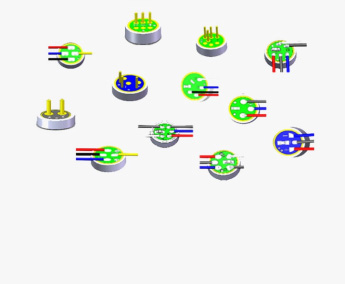

 | E-cigarette airflow sensor E-cigarette airflow sensor is a device that can detect airflow and generate a response. The built-in IC integrates all functions to simulate the effect of real smoke, including detecting the smoking action, driving the LED to light up and off to simulate real smoke, and output voltage to the atomizer to work and emit smoke. With high current protection, short circuit protection, battery protection, charge management and so on. Stable working state, high reliability and other advantages. > Small size, sensitivity is optional > Load capacity, output mode variety optional +E8 > High stability, anti-self-start design > Oil proof design |
| Functional classification | Dimensions | Starting air pressure | Part Number | Charging current | Constant voltage/constant power | Nominal load | Output mode | LED light color | Lamp color customization |
| Capacitive type | Ø6.0*2.5 | -100^-300Pa | TN6025NOPN-XX | nothing | nothing | nothing | Two stitches 1.3mm Two needles 2.7mm | nothing | Normal/Advanced |
| Digital switch type | Ø6.0*2.5 | -100^-300Pa | TN6025ECPN-XX | nothing | nothing | nothing | Three needle 1.6mm Three needle 2.7mm | nothing | Normal/Advanced |
| One time functional type | Ø6.0*2.5 | -100^-300Pa | TN6025ETWX-XX | nothing | Constant voltage 3.6V | 1.5Ω | Three line customization/with lights | Lamp color customization | Normal/Advanced |
| One time functional type | Ø6.0*2.5 | -100^-300Pa | TN6025ETPN-XX | nothing | Constant voltage 3.6V | 1.5Ω | Three needle 2.7mm | nothing | Normal/Advanced |
| One time functional type | Ø6.0*2.5 | -100^-300Pa | TN6025EDPN-XX | nothing | Constant voltage 3.6V | 1.2Ω | Three needle 1.6mm Four needle 1.6mm Four needle 2.7mm | nothing | Normal/Advanced |
| One time functional type | Ø6.0*2.5 | -100^-300Pa | TN6025EDWX-XX | nothing | Constant voltage 3.6V | 1.2Ω | Three line customization/with lights | Lamp color customization | Normal/Advanced |
| One time functional type | Ø6.0*2.5 | -100^-300Pa | TN6025EDWX-XX | nothing | Constant voltage 3.6V | 1.2Ω | Four wire customization/no lamp | nothing | Normal/Advanced |
| One time functional type | Ø6.0*2.5 | -100^-300Pa | TN6025EEWX-XX | nothing | Constant voltage 3.6V | 0.8Ω | Three line customization/with lights | Lamp color customization | Normal/Advanced |
| One time functional type | Ø6.0*2.5 | -100^-300Pa | TN6025EEPN-XX | nothing | Constant voltage 3.6V | 0.8Ω | Three needle 1.6mm Three needle 2.7mm | nothing | Normal/Advanced |
| One time functional type | Ø6.0*2.5 | -100^-300Pa | TN6025EEWX-XX | nothing | Constant voltage 3.6V | 0.8Ω | Four wire customization/no lamp | nothing | Normal/Advanced |
| One time functional type | Ø6.0*2.5 | -100^-300Pa | TN6025EMWX-XX | nothing | Constant voltage 3.6V | ≥1.0Ω | Three line customization/with lights | Lamp color customization | Normal/Advanced |
| One time functional type | Ø9.7*3.2 | -100^-300Pa | TN9732EDWB-XX | nothing | Constant voltage 3.6V | Double circuit 1.2 Ω | Four wire customization/with light | Lamp color customization | Normal/Advanced |
| One time functional type | Ø6.0*2.5 | -100^-300Pa | TN6025EDWX-XX | nothing | Constant power output | 1.2Ω | Three line customization/with lights | Lamp color customization | Normal/Advanced |
| Charging function type | Ø6.0*2.5 | -100^-300Pa | TN6025EMWX-XX | 350mA 500mA | Constant voltage 3.6V | ≥1.0Ω | Five line customization/with lights | Lamp color customization | Normal/Advanced |
| Charging function type | Ø6.0*2.5 | -100^-300Pa | TN6025EMPN-XX | 350mA 500mA | Constant voltage 3.6V | ≥1.0Ω | Five needle 1.6mm | nothing | Normal/Advanced |
| Charging function type | Ø6.0*2.5 | -100^-300Pa | TN6025EEWX-XX | 350mA 500mA | Constant voltage 3.6V | 0.8Ω | Five line customization/with lights | Lamp color customization | Normal/Advanced |
| Charging function type | Ø6.0*2.5 | -100^-300Pa | TN6025EEWN-XX | 350mA 500mA | Constant voltage 3.6V | 0.8Ω | Six wire customization/no lamp | nothing | Normal/Advanced |
| Charging function type | Ø7.0*2.5 | -100^-300Pa | TN7025EEWX-XX | 350mA 500mA | Constant voltage 3.6V | 0.8Ω | Five line customization/with lights | Lamp color customization | Normal/Advanced |
| Charging function type | Ø6.0*2.5 | -100^-300Pa | TN6025EOWX-XX | 350mA 500mA | Constant effective output | ≥1.0Ω | Five line customization/with lights | Lamp color customization | Normal/Advanced |
