MEMS MIC

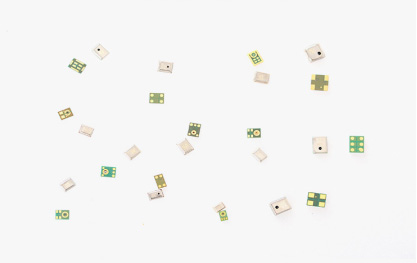

Silicon microphones have the advantages of small size, concentrated sensitivity, high signal-to-noise ratio, low power consumption, low distortion, stable performance, high reliability, omnidirectional, etc. They have complete specifications and are divided into two categories: digital microphones and analog microphones. They are widely used in mobile phones, cameras, Bluetooth headsets, on-board Bluetooth and other electronic devices.


>Analog microphone has super mini size package products (SA2718 series)

>Analog microphone has superior RF interference suppression function and high SNR performance

>Piezoelectric microphone has good IPX8 waterproof performance

>Piezoelectric microphone has superior RF interference suppression function and high SNR performance

>Digital microphone with ultra-low standby power consumption

>Digital microphone with high sensitivity and high signal-to-noise ratio



Dimension(mmSound portDirectivityPart NumberOutput dataSensitivity(dB)SNR(dBA)Current（uA）Supply voltage（V）AOP（dBSPL）Lowfrequency roll-off(Hz)
3.76*2.24*1.1TopOmni-directionalSA3722T421-WT01Analog single -42±1dB59dB150uA1.6-3.613060
3.5*2.65*1.0BottomOmni-directionalSA3526B381-WJ23Analog single -38±1dB67dB150uA1.6-3.6124<20
2.75*1.85*0.9TopOmni-directionalSA2718T421-WT01Analog single -42±1dB59dB150uA1.6-3.613060
2.75*1.85*0.9TopOmni-directionalSA2718T421-YY21Analog single -42±1dB59dB110uA1.6-3.612850
4.0*3.0*1.2BottomOmni-directionalSA4030B381-YY23Analog differential -38±1dB70dB170uA2.3-3.013740
3.76*2.95*1.1TopOmni-directionalSA3729T421-WT01Analog single -42±1dB59dB150uA1.6-3.613060
3.76*2.95*1.1TopOmni-directionalSA3729T421-YY21Analog single -42±1dB59dB110uA1.6-3.612850
3.76*2.95*1.1BottomOmni-directionalSA3729B381-WT01Analog single -38±1dB63dB150uA1.6-3.6124<20
3.76*2.95*1.1BottomOmni-directionalSA3729B381-YY21Analog single -38±1dB63dB110uA1.6-3.612430
2.75*1.85*1.25TopOmni-directionalSA2718T381-HE01Analog single -38±1dB62dB150uA1.6-3.6128<20
2.75*1.85*0.9BottomOmni-directionalSA2718B381-WT01Analog single -38±1dB62dB150uA1.6-3.6125<20
2.75*1.85*0.9BottomOmni-directionalSA2718B381-YY21Analog single -38±1dB63dB110uA1.6-3.612480
4.0*3.0*1.2BottomOmni-directionalSD4030B361-YY03-3Digital PDM -36±1dBFS68dB1050uA1.62-3.613020
4.0*3.0*1.0TopOmni-directionalSD4030T261-YY02Digital PDM -26±1dBFS65dB650uA1.6-3.612040
4.0*2.0*1.1TopOmni-directionalSD4020T261-YY02Digital PDM -26±1dBFS64dB650uA1.62-3.6120100
3.5*2.65*0.98BottomOmni-directionalSD3526B261-YY02Digital PDM-26±1dBFS65dB650uA1.62-3.6120120
